SMT Equipment

Precision Pick & Place Machines

High-speed, high-accuracy SMT placement machines for PCB assembly lines — from desktop prototyping to full production floor deployments.

View Machines Request Quote

~7,000

CPH Max Speed

±0.02mm

Accuracy

Feeder Slots

Certified

Our Products

Pick & Place Machines

Three models to fit every production scale — from prototyping to continuous high-volume manufacturing.

HW-T4-44/50F

Speed7,000–8,000
AxesX, Y, Z + θ (±180°); double linear guides + double ground ball screws on XY; AC servo motors with high-speed DSP drivers
Feederselectric feeder slots + 48 IC tray positions; supports electric, pneumatic, vibrating feeders & IC trays

View Details →

HW-T4-44/50F (Desktop)

HW-T4-44/50F Desktop

Speed7,000 – 8,000
Axes4 axes (X, Y, Z, R/θ) — AC servo motors with high-speed DSP drivers; double linear motion guides + double ground ball screws on X/Y; max travel 629 × 679 mm; Z stroke 20 mm; rotation ±180°
Feeders50 (HW-T4-50F) / 44 (HW-T4-44F) — based on 8 mm electric feeders; also supports pneumatic feeders, vibrating feeders, and IC trays (up to 48 IC tray positions)

View Details →

HW-T2-40F (Desktop)

HW-T2-40F

Speed1,500 – 3,000
Axes4 axes (X, Y, Z, R/θ) — imported AC servo motors, ball-screw driven, TBI linear guide rails
Feeders40 (based on 8 mm electric feeders); also supports pneumatic feeders, vibration feeders, and IC trays

View Details →

Feeders

Original and refurbished Yamaha CL feeders for SMT machines — available in pneumatic and electric variants across 8mm, 12mm, 16mm and 24mm tape widths.

KW1-MXXXX-XXX

Yamaha CL Feeder for SMT Machine 12mm

Tape Width12mm
TypePneumatic
CompatibleYamaha YV / YS / YSM series

View Details →

KW1-MXXXX-XXX

Yamaha CL Feeder for SMT Machine 16mm

Tape Width16mm
TypePneumatic
CompatibleYamaha YV / YS / YSM series

View Details →

KW1-MXXXX-XXX

Yamaha CL Feeder for SMT Machine 24mm

Tape Width24mm
TypePneumatic
CompatibleYamaha YV / YS / YSM series

View Details →

KW1-M1500-030 / KW1-M1400-00X / KW1-M1300-00X / KW1-M1500-110

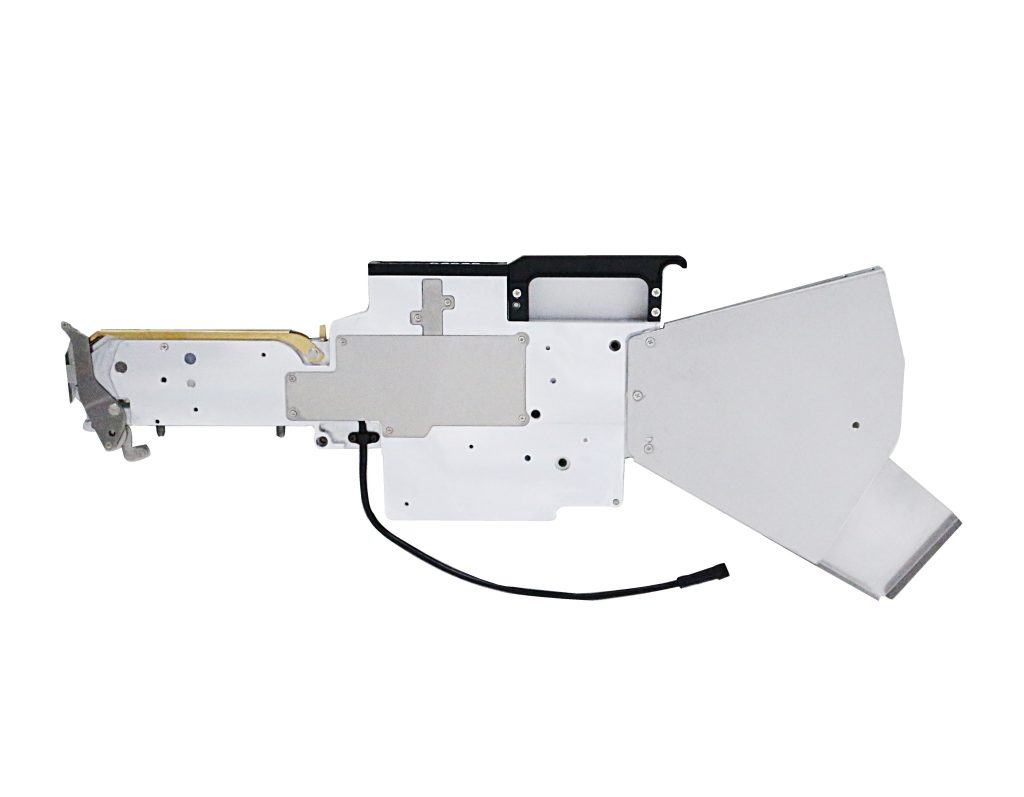

Yamaha CL Feeder 8×2mm

Tape Width8 mm
TypeElectric
CompatibleYamaha YV / YS / YSM series

View Details →

KW1-MXXXX-XXX

Yamaha CL Feeder for SMT Machine 8mm

Tape Width8 mm
TypePneumatic (mechanical ratchet indexing, pneumatically actuated)
CompatibleYamaha YV series (YV100II, YV100X, YV100XG, YV180XG, YV88XG, etc.); Yamaha YG series (YG100, YG200, YG300, YG12, YG12F); Philips/Assembleon CL-platform equivalents

View Details →

KW1-M1500-030 (for 0201) / KW1-M1400-00X (for 0402) / KW1-M1300-00X (for 0402, earlier rev) / KW1-M1500-110 (0201 variant) — depending on the component size and revision

Yamaha Pneumatic CL Feeder 8×2 mm

Tape Width8 mm (with 2 mm feed pitch)
TypePneumatic (mechanical ratchet indexing, pneumatically actuated)
CompatibleYamaha YV series (YV100II, YV100X, YV100XG, YV180XG, YV88XG, etc.); Yamaha YG series (YG100, YG200, YG300, YG12, YG12F); Philips / Assembleon equivalents (CL platform rebadged)

View Details →
